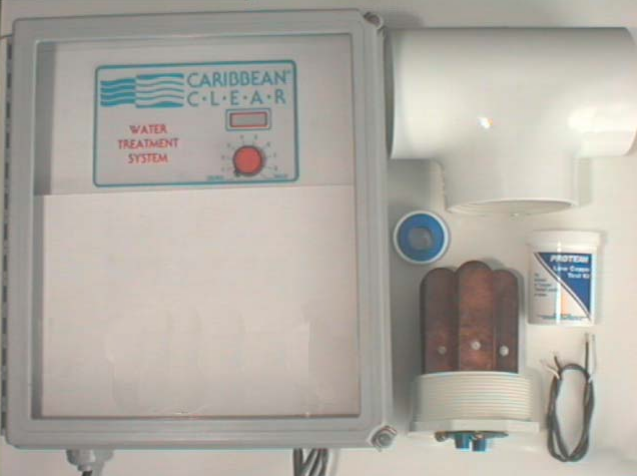

Caribbean Clear Model 1500-C
Commercial Pools to 1,500,000 gallons
note: only one of six
electrode chambers shown.
©1999 Fenix Technology, Ltd.
The model 1500-C is a large commercial system. It
features a digital display of ion current and is covered
by a glass front hinged lid with quick release
3.8/1.9 amps AC
Power 12 feet
Electrode 12 feet
9 set points plus true zero.
0-21 amps at 0-18VDC
WEATHER PROOF ENCLOSURE:
NEMA 4 rated fiberglass enclosure (light gray)
13W x 14.5H x 8.6D
(schedule 40 white PVC)
Six 4" sst tee [PVC-T-4X4X4]
Six 4" threaded plug [PVC-MAC-P-48]
Printed circuit board [PAR-ELE-PCB]
Twenty four pair C1 commercial [ELE-C1]
( 93% copper / 7% silver)
1 roll teflon tape [ACC-TAPE-TEFLON]
1 copper test kit [TES-CU-GIRVAN]
1 manual [ONR-MAN-COMM
