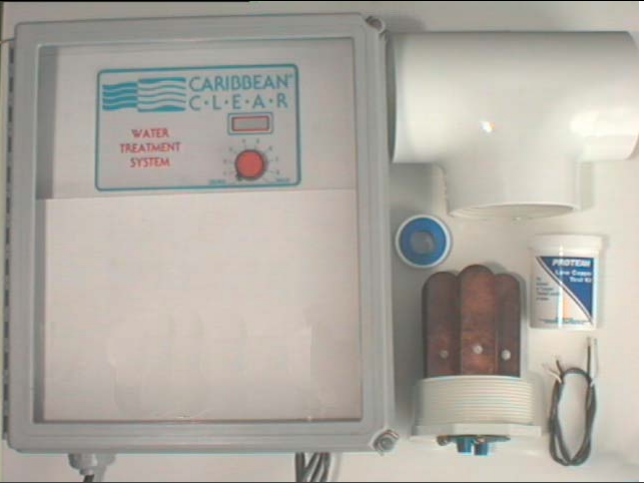

Caribbean Clear Model 500-C Commercial Pools to 500,000 gallons
STANDARD FEATURES
The model 500-C is a large commercial system. It
features a digital display of ion current and is covered by
a glass front hinged lid with quick release mechanism.
POWER SOURCE:
110-120/220-240 VAC
1.1/0.60 amps AC
CABLE LENGTH:
Power 12 feet
Electrode 12 feet
OUTPUT:
9 set points plus true zero.
0-7.5 amps at 0-18VDC
WEATHER PROOF ENCLOSURE:
NEMA 4 rated fiberglass enclosure (light gray)
13W x 14.5H x 8.6D
ELECTRODE CHAMBER
(schedule 40 white PVC)
Two 4" sst tee [PVC-T-4X4X4]
Two 4" threaded plug [PVC-MAC-P-48]
Printed circuit board [PAR-ELE-PCB]
ELECTRODES
Eight pair C1 commerical [ELE-C1]
(93% copper / 7% silver)
OTHER
1 roll teflon tape [ACC-TAPE-TEFLON]
1 copper test kit [TES-CU-GIRVAN]
1 manual [ONR-MAN-COMM]
