The model 15-R is a popular residential model
for most above-ground pools, and swim spas. It features
5 status indicators to advise the user of proper operation,
including power, current direction and performance.
0.35/0.19 amps AC
Power 6 feet
Electrode 6 feet
11 set points plus zero.
0-0.20 amps at 0-18VDC

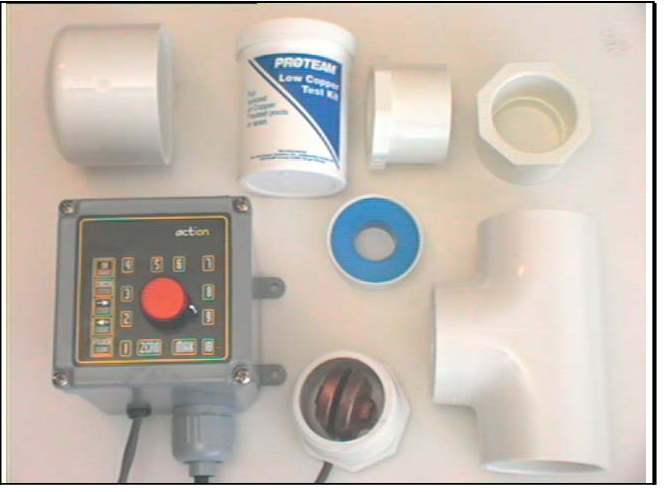

Marine rated plastic enclosure (gray)
4W x 4H x 4.5D
(schedule 40 white PVC)
2" sst tee [PVC-T-2X2X2]
Two 2"x1-½” ss bushing [PVC-BUS-2X1½ ]
2" threaded plug [PVC-MAC-PLUG-22]
2½" slip cap [PVC-CAP-2½]
One pair R1 residential [ELE-R1]
( 93% copper / 7% silver)
1 roll teflon tape [ACC-TAPE-TEFLON]
1 copper test kit [TES-CU-GIRVAN]
1 manual [ONR-MAN-15-R]
