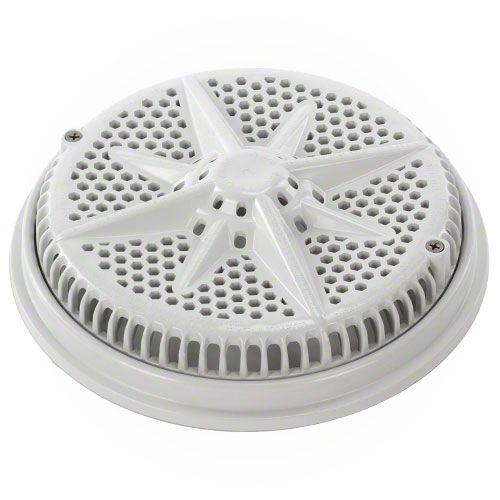

Pentair StarGuard Main Drain Cover 500103
Pentair StarGuard drains comply with provisions of the ANSI/APSP 16-2011 standard as required by the Virginia Graeme Baker Pool & Spa Safety Act. StarGuard drains have an industry leading 15.35 square inches of open area for water flow. If you are in an area where water velocity through the grate is limited to 1.5 feet/second, the StarGuard covers allow flow rates up to 72 GPM.
StarGuard Drain Cover Features:
StarGuard Cover With Short Ring
Flow Rate Floor - 144 Gallons Per Minute
Flow Rate Wall - 112 Gallons Per Minute
Open Area - 15.35 Square Inches
8" Round Main Drain
Compliant with the Virginia Graeme Baker Act
NSF 50 Certification. Approved for use in commercial installations
Color - White
Pentair 500103
Pentair StarGuard drains comply with provisions of the ANSI/APSP 16-2011 standard as required by the Virginia Graeme Baker Pool & Spa Safety Act. StarGuard drains have an industry leading 15.35 square inches of open area for water flow. If you are in an area where water velocity through the grate is limited to 1.5 feet/second, the StarGuard covers allow flow rates up to 72 GPM.
StarGuard Drain Cover Features:
StarGuard Cover With Short Ring
Flow Rate Floor - 144 Gallons Per Minute
Flow Rate Wall - 112 Gallons Per Minute
Open Area - 15.35 Square Inches
8" Round Main Drain
Compliant with the Virginia Graeme Baker Act
NSF 50 Certification. Approved for use in commercial installations
Color - White
Pentair 500103
