Prominent Chlorine Dioxide System Bello Zon® CDEb -

Prominent Chlorine Dioxide System Bello Zon® CDEb

Regular price
Call For Price 09173106228
Sale price

5-200 g/h chlorine dioxide. Max. flow at 0.2 ppm ClO2 metering is 1,000 m3/h

Chlorine dioxide system, which continuously produces ClO2 according to the acid/chlorite method with diluted chemicals. Extremely simple operation, clear construction, analogue control, manual control or via contacts.

Bello Zon® CDEb is winning over customers, thanks to its ultra-simple operation and clearly laid out construction.

A ready-to-use chlorine dioxide system for the continuous production and metering of chlorine dioxide with diluted chemicals. The emphasis is on ultra-simple operation and clearly laid out system design with standard components.

The stroke lengths of the metering pumps are continuously monitored. This rules out inadmissible operating statuses arising from incorrect pump stroke length adjustments.

The system is extremely easy to operate and, alongside a central Start-Stop key, also has colour-differentiated LEDs to display all the operating statuses.

The system can be controlled in an analogue or manual manner or via contacts

Your benefits

  • Minimal training required thanks to extremely simple operation
  • Minimal investment costs
  • Short lead times
  • Excellent operating safety
  • Simple process integration

Field of application

  • Municipal potable water and waste water treatment
  • Industrial process and cooling water
  • Disinfection in the food and beverage industry

Technical Details

Power supply

  • 100-230 V, 50/60 Hz


  • 1 digital input for the Pause function
  • 1 digital input for contact water meter 0.25-20 Hz
  • 1 analogue input 0/4-20mA


  • 1 alarm signal relay
  • 1 warning signal relay

Operating substances

  • Sodium chlorite 7.5%, purity according to EN 938
  • Hydrochloric acid 9% purity according to EN 939
  • Particle-free water

Degree of protection

  • IP 54

Bypass pipework

  • DN 20
Type Chlorine dioxide capacity* Max. operating pressure ** Operating temp. Connector size, chlorite and acid metering pumps Dimensions H x W x D Dimensions of the bypass connector Weight
  min.-max./hour min./day
g/h g/d °C mm DN kg
CDEb 30 5–30 10 7 / 8 ** 15–40 6x4 958 x 700 x 250 20 23
CDEb 75 10–75 20 7 / 8 ** 15–40 6x4 958 x 700 x 250 20 24
CDEb 200 20–200 40 7 / 8 ** 15–40 8x5 958 x 700 x 250 20 27
* The metering figures relate to 5 bar back pressure and an ambient temperature of 20 °C. The minimum capacity/per hour is based on the fact that when the system is operating at below 10 % of the nominal capacity, continuous metering is no longer possible, due to the then low pumping frequency of the metering pumps. Where systems are operating continuously, change the reactor content at least 2 x daily. Do not operate at below the specific minimal output/day.
** 8 bar at maximum 35 °C ambient temperature

Subject to technical and design changes

Scope of supply:

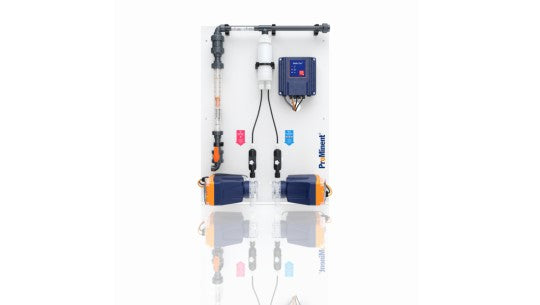

Bello Zon® CDEb systems are supplied connection-ready on a wall panel. Connection to the site bypass line is via DN 20 PVC threaded connectors with straight solvent unions. Order suction lances for the chemical pumps, safety collecting pans for the chemical drums and other accessories, like flushing equipment with a vacuum relief valve separately.
