Perfect for the treatment of higher flows.
Flow up to 809 m3/h

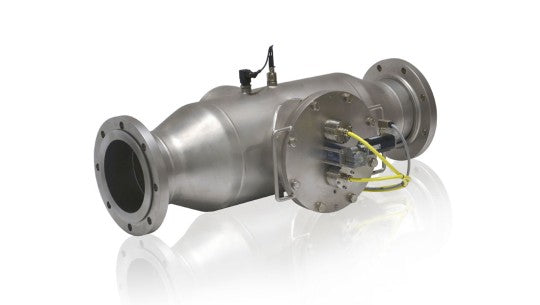

The UV system Dulcodes A helps to ensure water quality. The UV system works energy-efficiently and cleanly based on continuously variable medium pressure lamps and can therefore automatically compensate for variations in the water quality or level of contamination.
The UV system Dulcodes A has a compact design. Output-optimised medium pressure lamps ensure effective disinfection of potable water and the photochemical breakdown of oxidants and/or combined chlorine.
The system is fitted with electronic ballasts, which continuously adjust the lamp output, either via an external signal, such as the flow rate, or by specification of a setpoint.
A long-term stable UVC sensor ensures that the system operates safely and reliably. The motor-driven automatic wiper efficiently cleans the lamp protection tubes and minimises maintenance work with types of water that have a tendency to form films. After comprehensive certification and biodosimetric validation, the systems comply with strict internationally recognised NSF, UL, CSA and USEPA standards.
Your benefits
- Simple installation, thanks to the compact inline system, ensures minimal installation work and fast retrofitting
- Maximum flexibility when installing, thanks to the free choice of fitting position and direct installation in plastic pipes, as no UV radiation escapes from the reactor
- External power control via 0/4 - 20 mA standard signal for optimum adaptation of the system to changing operating conditions, such as flow fluctuations
- Automatic adjustment of the lamp output to a defined UV-C sensor signal with power increase to a raised, adjustable sensor signal via a digital input saves energy and extends the lamp service life.
- Unbeatable simple and quick maintenance: All maintenance work can be carried out quickly and conveniently from one side.
- Certified systems: NSF 50, CSA 22, UL508, comprehensively biodosimetrically validated to UVDGM 2006
Field of application
- Potable water
- Process water
- Swimming pool water
Technical Details
- Optimised use of energy, thanks to large radiation chamber and uniform irradiation of the entire water flow due to optimised system hydraulics.
- Radiation chambers made of high-grade stainless steel 1.4404/AISI316L
- Powerline A medium-pressure lamps with high power input of up to 3 kW
- Guaranteed (pro rata) lamp service life of 8,000 hours
- Long-term stable UVC sensor for monitoring the lamp output, lamp protection tube fouling and changes in water quality
- Integral temperature sensor for monitoring the water temperature in the radiation chamber
- Automatic motor-driven wiper for efficient removal of deposits on the lamp protection tube
- Double, independent and automatic monitoring of the wiper function by revolution counter and limit switch
- Control cabinet made of coated steel
- Freely programmable control (Comfort controller Dulcodes A) with backlit display during normal operation (green), warning (yellow) and fault (red)
- Large graphic display to show all important operating parameters, such as the UV sensor signal, lamp power consumption, control type and operating status
- Interfaces and connectors for:
- Stopcock and flushing valve
- Control of the feed pump
- Operating signal relay
- Warning and alarm relay for UV intensity
- Collective malfunction alert relay
- Pause contact
- Relay for monitoring reactor temperature
- Temperature monitoring and fault indicating relay for control cabinet temperature
- Input for external fault
- Digital input for switch-over to second power stage
- 4-20 mA standard signal input for flow-dependent lamp control or control dependent on measured value
- Standard signal output 4-20 mA of UV sensor signal
Technical Data
| Type | Max. flow | Lamp power | Connected load | Reactor length | Minimum clearance for service | Min. distance from wall | Empty weight/Operating weight | Connector width DIN/ANSI |
|---|---|---|---|---|---|---|---|---|
| m3/h | W | kW | mm | mm | mm | kg | DIN / ANSI | |
| 1 x 1A | 50.0* / 83.0** | 1.000 | 1.10 | 700 | 400 | 300 | 31/47 | DN 100/4" |
| 1 x 2A | 91.0* / 149.0** | 2.000 | 2.10 | 700 | 500 | 300 | 38/65 | DN 150/6" |
| 1 x 3A | 176.0* / 290.0** | 3.000 | 3.20 | 800 | 600 | 300 | 52/118 | DN 200/8" |
| 2 x 2A | 240.0* / 395.0** | 4.000 | 4.20 | 900 | 1,000 | 300 | 78/166 | DN 200/8" |
| 2 x 3A | 328.0* / 539.0** | 6.000 | 6.20 | 900 | 1,000 | 300 | 78/166 | DN 250/10" |
| 3 x 3A | 492.0* / 809.0** | 9.000 | 9.20 | 900 | 1,000 | 300 | 78/166 | DN 300/12" |
* 98 %/cm transmission; 600 J/m2 UV dose for the breaking down of combined chlorine
** 98 %/cm transmission; 400 J/m2 UV dose for disinfection applications
| Lamp type | Medium-pressure lamp Powerline A |
| Permissible operating pressure |
10 bar (for systems 1 x 1A - 1 x 3A) 7 bar (for systems 2 x 2A - 3 x 3A) |
| Permissible ambient temperature | 5 – 40 °C |
| Permissible water temperature | 5 – 40 °C |
