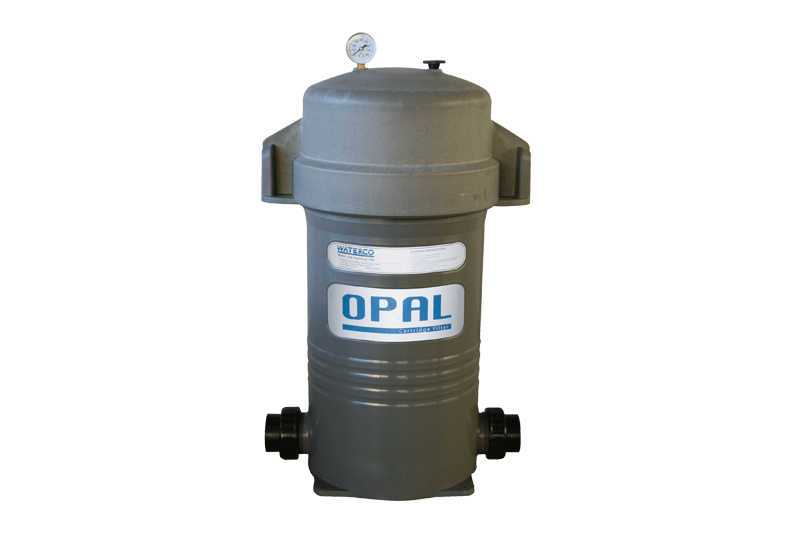

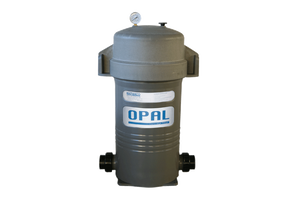

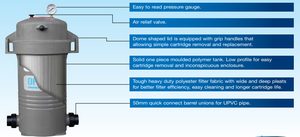

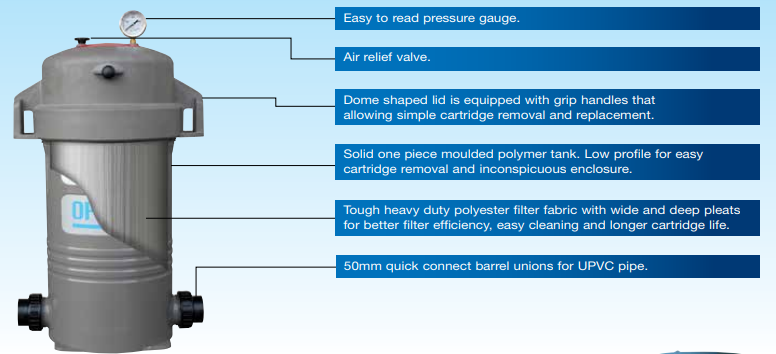

Opal XL cartridge filters are designed to house an extra large filter cartridge, maximising its dirt holding capacity and minimising filter maintenance.
The filter's dome lid allows easy access to the filter cartridge for removal, cleaning and installation in a matter of minutes.
The Opal XL cartridge filters are ideal for applications where back washing may not be practical or areas where water may be scarce
Extra Large Filter
Cartridge Opal XL filter cartridges are fabricated from pleated reusable polyester fabric. The extra larger size cartridge has been pleated to provide 225ft (20.9m2) to 270ft2(25.1m2) of surface area maximising its dirt holding capacity and minimising filter maintenance.
The filter cartridge is easily cleaned by hosing the pleats with a standard garden hose.
Material: Polyester fabric material, plastisol end caps and a polypropylene core.
Operating Temperature: 4ºC to 50ºC
Maximum Pressure Drop: 20 kPa
